TRIPPLITE B156-002-HD-V2 2-Port DisplayPort to HDMI Multi-Monitor Splitter MST Hub 4K 60Hz UHD DP1.2

Description

B156-002-HD-V2 2-Port DisplayPort 1.2 to HDMI MST Hub connects two HDMI televisions, projectors or monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them, or combine both into one large monitor in video wall mode.

The B156-002-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 4K @ 60Hz (3840 x 2160). This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.

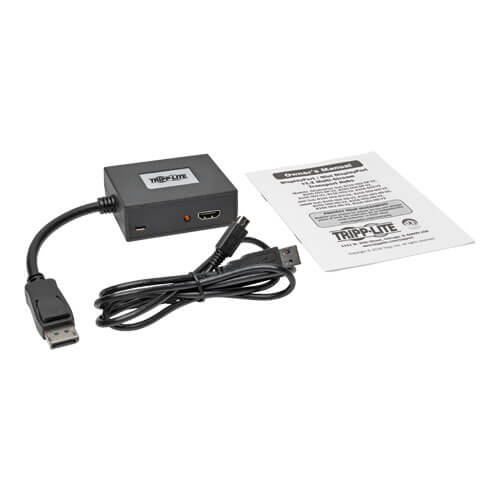

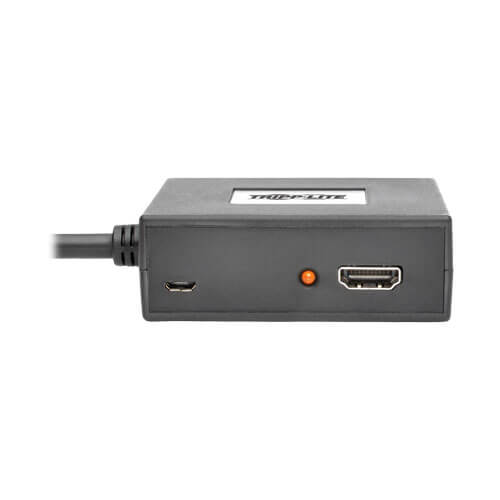

The B156-002-HD-V2 works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. The included three-foot USB Micro-B cable delivers necessary power from the connected computer. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-002-HD-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features:
Connects 2 HDMI Displays to Your Computer’s DisplayPort Output
* Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings

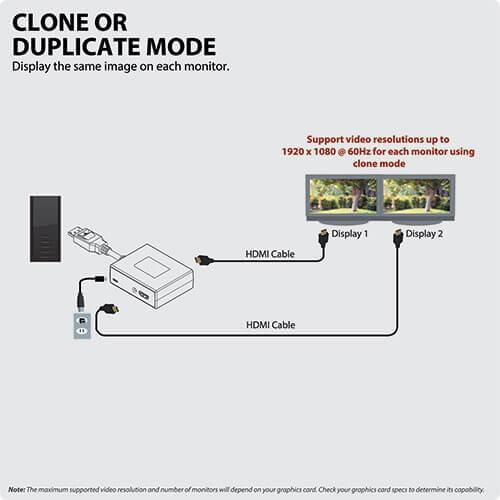

* Displays same image on 2 monitors simultaneously in mirror mode

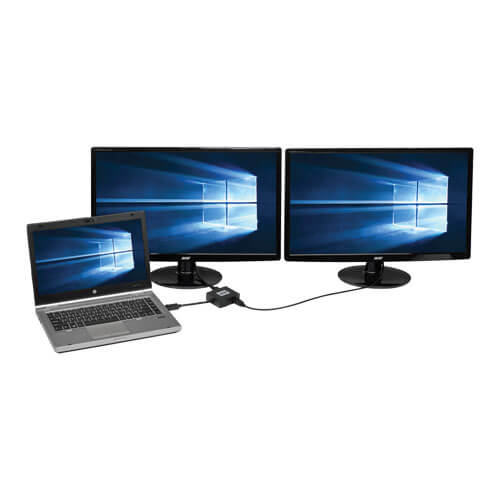

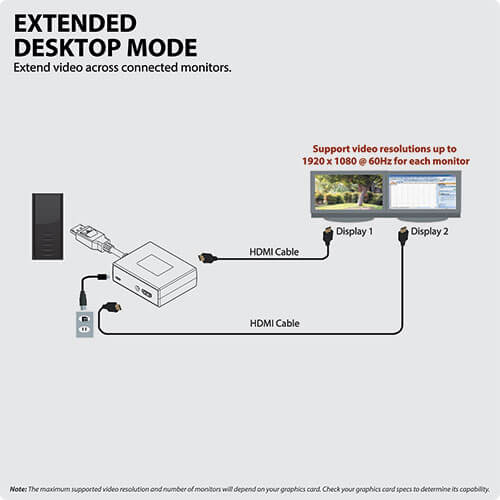

* Extends desktop across 2 monitors in extended mode

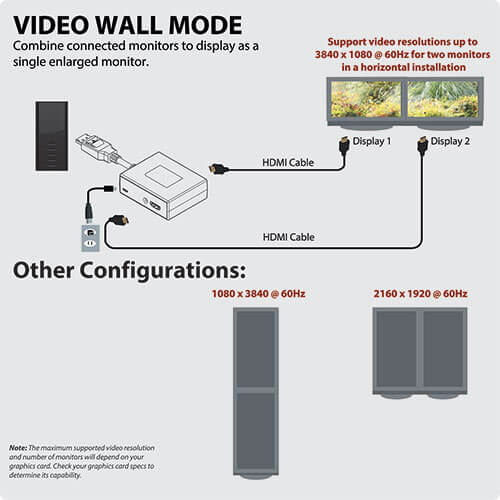

* Combines 2 monitors into one large monitor in video wall mode

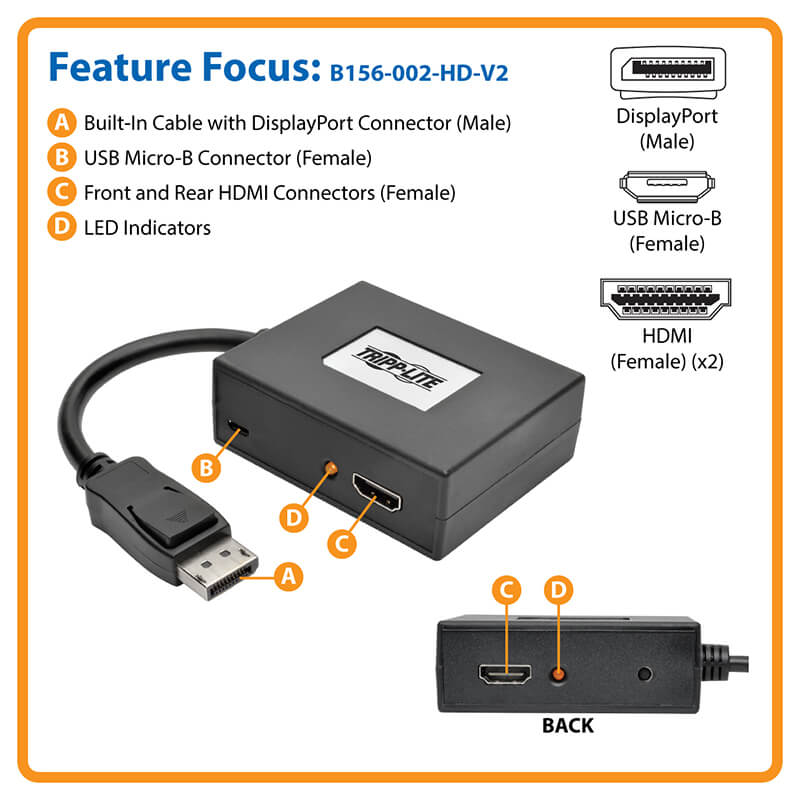

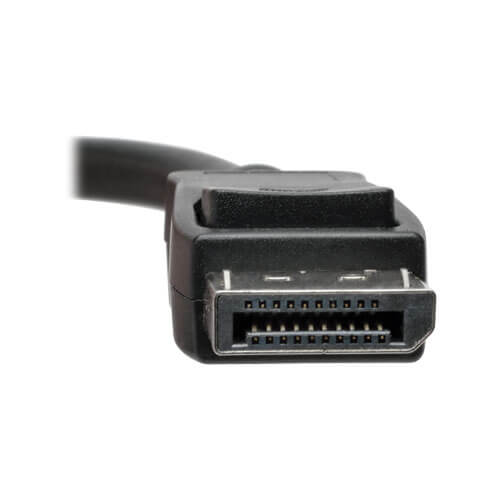

* Built-in 6 in. cable connects directly to DisplayPort source

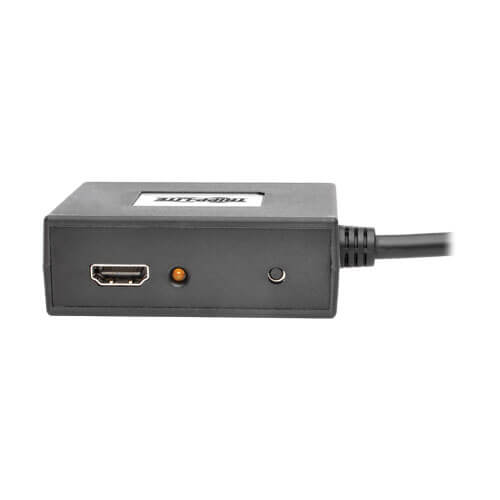

* LEDs indicate when monitors are receiving a signal

Meets the Latest Performance Standards
* Supports UHD video resolutions up to 4K @ 60Hz (3840 x 2160)
* Supports HDCP, EDID and DDC
* Supports 48-bit Deep Color (16 bits per channel)
* Supports DTS-HD, Dolby True HD and 7.1-channel surround sound audio
* Backward compatible with DisplayPort 1.1 and 1.1a

Easy to Use Almost Anywhere
* Works with all operating systems
* Plug and play—no software, drivers or external power supply required
* Bus-powered via included USB Micro-B cable

TAA Compliant
* Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
