TRIPPLITE PDUMV20HVNET2LX 3.7kW Single-Phase 208/230V Switched PDU – 7 C13, 1 C19 Outlets, C20 / L6-20P Inputs

PRODUCT DATASHEET

3.7kW vertical PDU distributes, monitors and manages single-phase power in an IT or industrial environment. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.

* 3.3-3.7kW 208/230 single-phase switched 1-meter 0U PDU
* 8 individually controllable outlets—7 C13, 1 C19
* Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
* Digital ammeter for on-site load monitoring in real time
* C20 inlet input with detachable 10-ft. (3.05 m) NEMA L6-20P power cord



Add to Wishlist
SKU: PDUMV20HVNET2LX Category:

Description

PDUMV20HVNET2LX 3.3-3.7kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for your IT or industrial application, it features eight switched outlets (seven C13 and one C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 10-ft. (3.05 m) cord with NEMA L6-20P plug is included.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, CLI, FTP, DHCP and NTP.
A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The switched PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

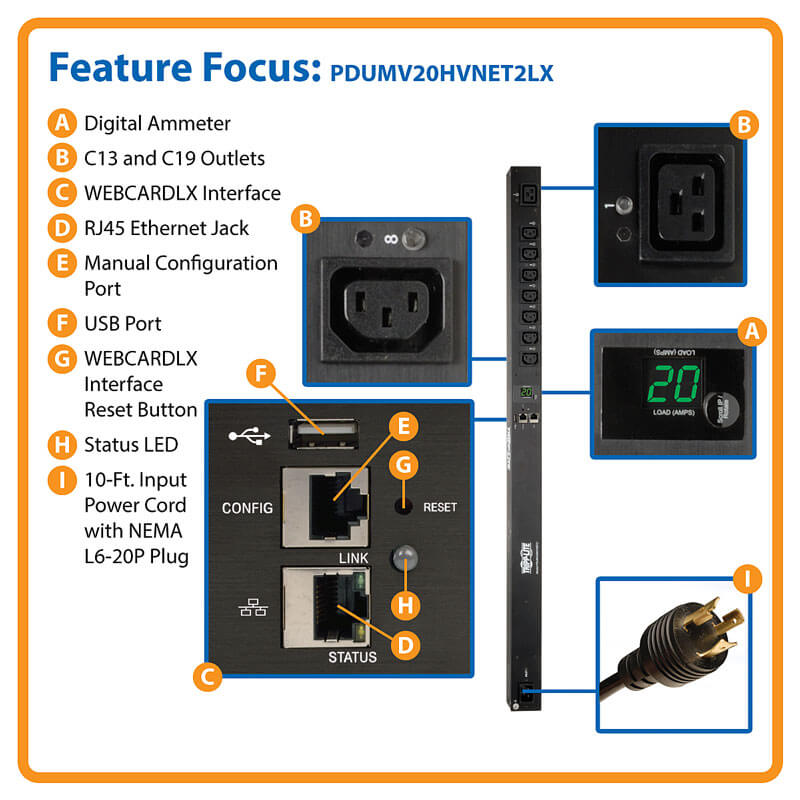

Features:

Distributes, Monitors and Manages Network-Grade AC Power
  • 3.3-3.7kW 208/230 switched PDU with single-phase input
  • C20 inlet compatible with wide variety of user-supplied power cords

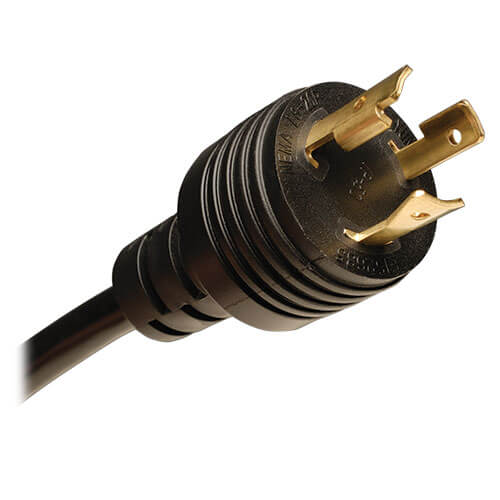

  • Detachable 10-ft. (3.05 m) cord with NEMA L6-20P plug included
  • Firmware upgrades support future product enhancements
7 C13 and 1 C19 Switched Outlets Distribute AC Power
  • Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
  • Included plug-lock inserts prevent cables from becoming accidentally disconnected

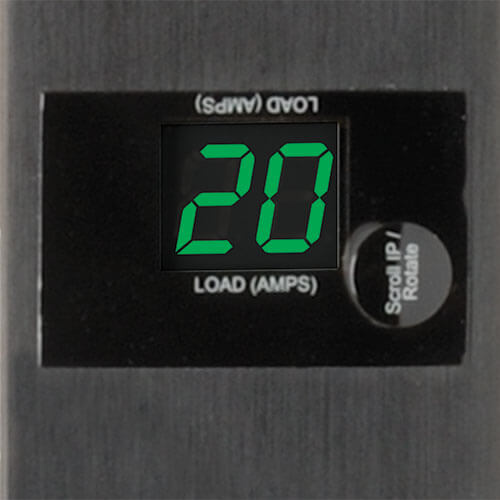

Digital Ammeter
  • Reports total connected equipment load in real time
  • Supports IP-address self-ID
  • Rotates 180° for easy reading at either angle

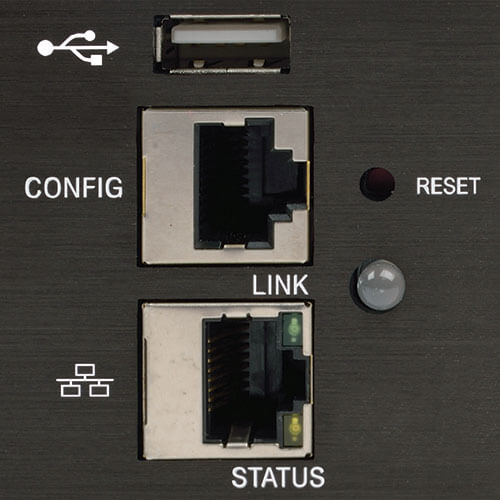

Built-In LX Platform Interface
  • Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
  • PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
  • IP-based Auto Probe detects lost connectivity and restores service autonomously
Easy 0U Installation in EIA-Standard 19 in. Racks

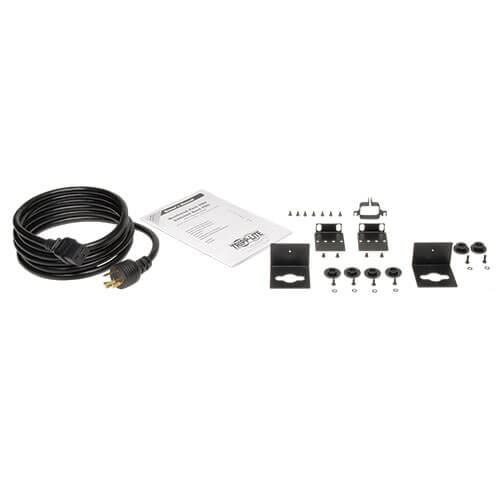

  • Mounts vertically using included toolless buttons or rack-mounting brackets
  • Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
