Description

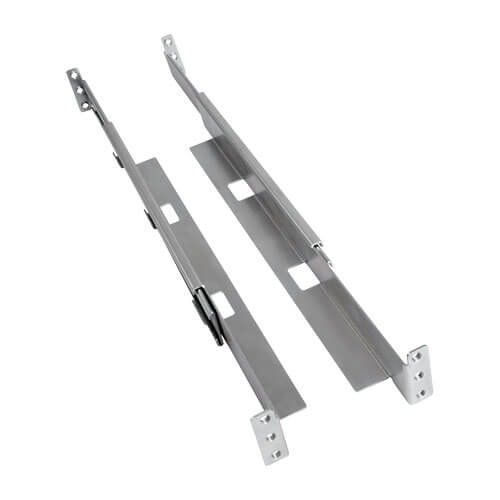

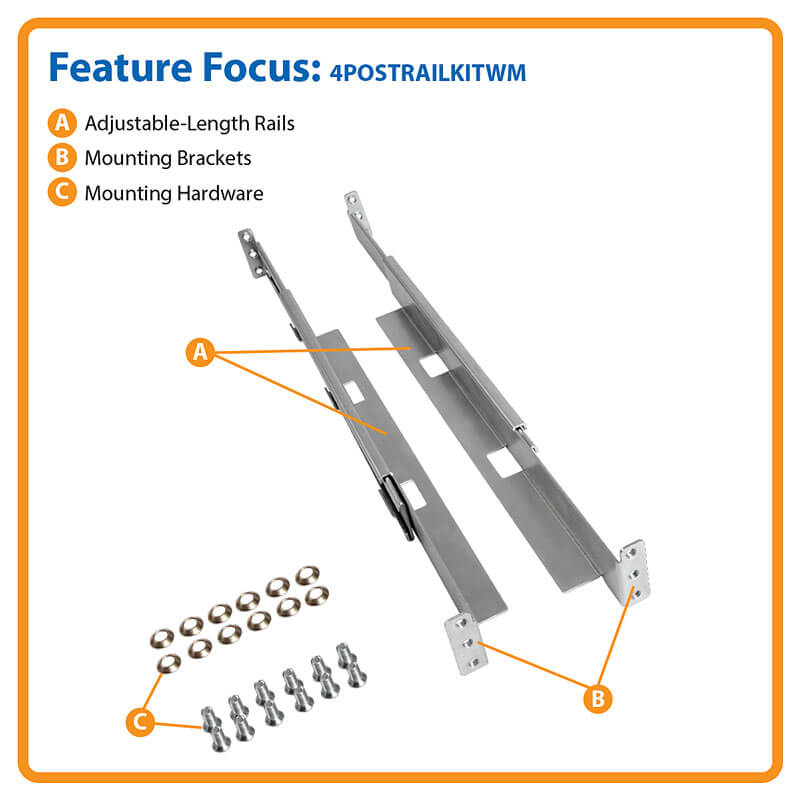

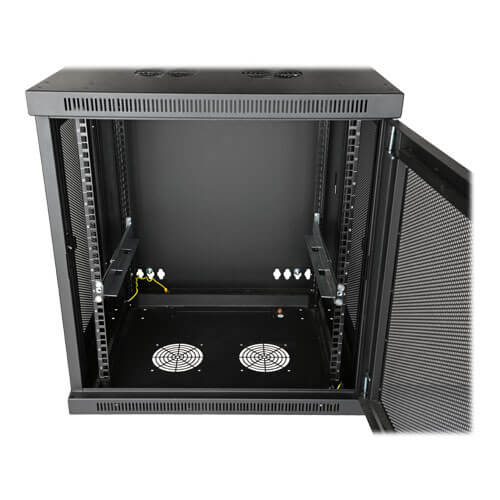

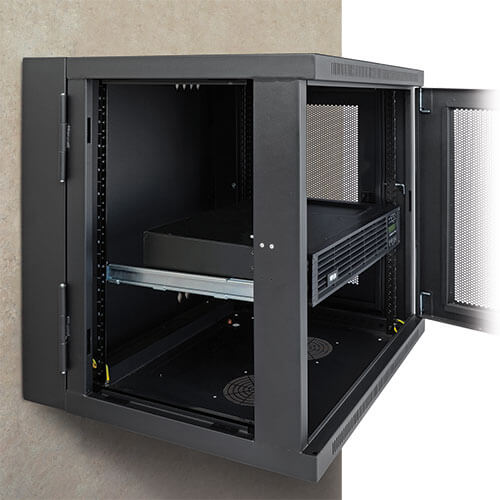

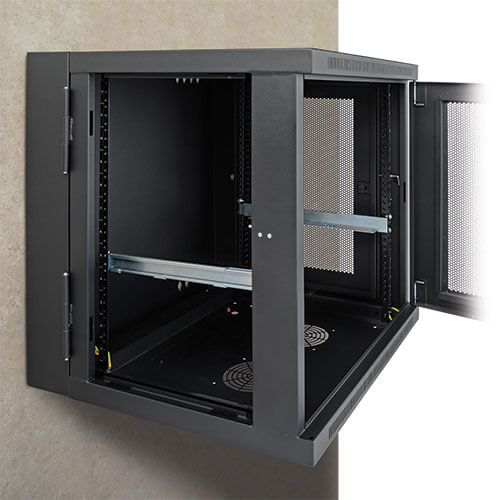

4POSTRAILKITWM wall-mount rack shelf kit provides extra support for heavy UPS systems, PDUs or other rack-mount components that weigh 150 lbs (68 kgs) or less. It includes two adjustable mounting rails that attach to the mounting rails of your EIA-standard 19-inch wall-mount enclosure. Constructed using cold-rolled steel with a durable powder-coated finish, this heavy-duty rack rail kit comes with mounting hardware compatible with square-hole racks.
The rails offer front-to-rear support for equipment with 17.5-inch-wide rectangular chassis. They also adjust to any setting between 14.5 and 23.5 inches and leave the rack’s front and rear mounting holes free to attach equipment. Setup is hassle-free and saves money and time on installation. Threaded-hole rack installation is also supported with user-supplied mounting hardware.
Features:
Additional Rack-Mount Shelf for Your Wall-Mount Rack
* 1U rack rail kit with maximum load capacity of 150 lbs (68 kgs)
* Compatible with 19 in. wall-mount open frame racks and enclosures
* Expandable support rails offer front-to-rear support for equipment with 17.5 in. rectangular chassis
* Rails adjust to any setting between 14.5 and 23.5 in.
* Leaves front and rear mounting holes free for equipment
Heavy-Duty Construction with Versatile Mounting Options
* Cold-rolled steel construction with powder-coated finish designed for long life

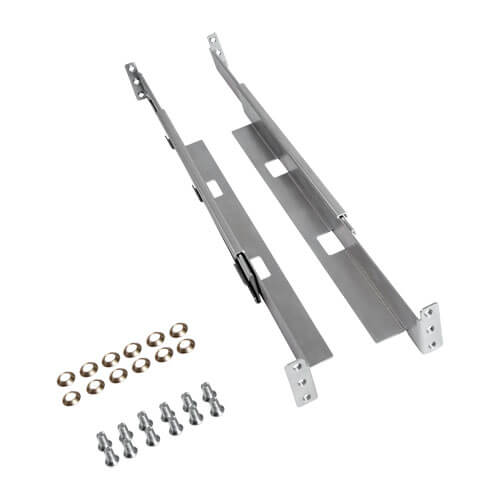

* Mounting hardware included for quick installation in square-hole rack
* Threaded-hole rack installation supported with user-supplied hardware
