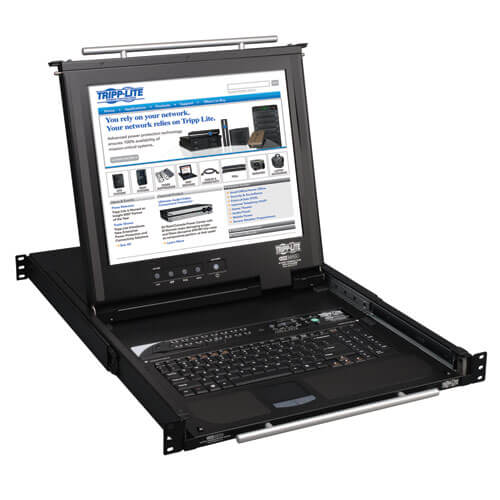

TRIPPLITE B020-016-17-IP NetDirector 16-Port 1U Rack-Mount Console KVM Switch with 17-in. LCD and IP Remote Access

Description

B020-016-17-IP KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the B020-016-17-IP can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers.

The B020-016-17-IP has a built-in 17” LCD screen that supports video resolutions up to 1280 x 1024 and remote monitor resolutions up to 1600 x 1200. You can switch easily between the 16 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Up to 64 users can be authorized and 32 remote users can be logged on concurrently when multi-user operation is enabled, with multi-level password security. RADIUS server authentication is supported.

This switch controls PS/2 or USB computers/servers using a P774-Series (PS/2) or P776-Series (USB) KVM Cable Kit (one of each is included). When not in use, the B020-016-17-IP stores neatly in a rack drawer and pulls out when needed. With its dual-rail design, you can slide the keyboard into the rack, while the monitor stays visible. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features:
Saves Space and Money
• Combines 16-port KVM switch, 17″ LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium
• Mounts into 19”-wide rack, 26.5”-30” deep
• Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use; dual-rail design lets you push in the keyboard while the LCD stays open

IP Remote Access for Fewer Trips to the Server Room
• Remote access offers convenience of controlling servers from anywhere…no need to travel to the server room or network closet
• Supports both IPv4 and IPv6 and network interfaces TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping

Simplifies IT Tasks
• Switch easily between the 16 ports via on-console buttons, on-screen display or hot keys
• Panel array mode lets you monitor multiple ports at the same time
• Hot pluggable; add or remove computers without powering down the switch
• Auto-scan mode automatically sequences through all active ports accessible to the user
• Windows-based log server tracks events on your installation

Large 17” LCD
• Wide display makes multitasking easier
• Supports video resolutions up to 1280 x 1024; remote monitor resolutions up to 1600 x 1200
• DDC emulation allows settings of each computer to be automatically adjusted for optimal output to LCD

Advanced Security Features
• Includes password protection and advanced encryption: 1024-bit RSA, 256-bit AES, 56-bit DES, and 128-bit SSL
• Supports RADIUS server authentication
• Allows up to 64 user accounts; with multi-user operation enabled, up to 32 users can log on at one time

Expandability and Long-Lasting Reliability
• Compatible with all major operating systems for easy integration into your existing structure
• Flash firmware is upgradable over a network connection
• Heavy-duty steel housing stands up to frequent use

TAA Compliant
• Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements:
• S/2 or USB computer with VGA, SVGA or MultiSync video graphics card with HD15 port
• (1) P774-Series (PS/2) or P776-Series (USB) KVM Cable Kit is required for each connected computer/server
• Computers that access the KVM remotely should have at least a Pentium III, 1GHz processor, with screen resolution set to 1024 x 768
• If remote computer is accessing the switch with Windows Client, DirectX 7.0 or higher is needed; if accessing the switch with Java Client, Sun’s Java 2 (1.4.2 or higher) runtime environment must be installed
• Browsers must support 128-bit encryption
• A network transfer speed of 128 Kbps or higher is recommended
• Compatible with all major operating systems
• Power consumption: 120V, 60Hz, 31W; 230V, 50Hz, 39W
