Description
B118-008-UHD HDMI Splitter allows the 4K/2K digital signal from a Blu-Ray player or other HDMI device to be displayed on up to eight HDMI displays, or, connect a DVI-D Single Link display using an HDMI to DVI adapter, such as Tripp Lite’s P566-Series cables. Installation is quick and simple, with no software or drivers to install. Locate your HDMI source up to 16.4 ft. (5 m.) from the splitter, and the splitter up to 16 ft. (5 m.) from a display, for a max distance of 23 ft. (7 m.) between splitter and display. Supports Full 3D and video resolutions up to both 4096 x 2160 and 3840 x 2160 (4K x 2K) @ 30Hz. High Speed HDMI and 3D compliant, with support for 36-bit Deep Color (12-bits per channel). Supports DTS-HD, Dolby True HD, Dolby Digital Plus, and LPCM 7.1 Channel Surround Sound audio. HDCP and EDID compliant.
Features:
• Simultaneously transmit the video and audio from an HDMI source to multiple HDMI monitors
• Supports Full 3D and video resolutions up to both 4096 x 2160 and 3840 x 2160 (4K x 2K) @ 30Hz
• Supports 36-bit Deep Color (12-bits per channel)
• Supports DTS-HD, Dolby True HD, Dolby Digital Plus and LPCM 7.1 Channel Surround Sound audio
• Supports video amplifier bandwidth of 340MHz / 3.4Gbps per channel (10.2Gbps total)
• HDCP and EDID compatible
• Plug and play; no software or drivers required
• Supports Lip Sync pass-through
• Supports xvYCC and x.vColor
• Supports the use of DVI sources and displays with the use of an optional DVI to HDMI adapter (sold separately)
• Supports a maximum distance of 16.4 ft. (5 m) from source to splitter, and 23 ft. (7 m) from splitter to display, for a total of up to 39.4 ft. (12 m)
• Cascade up to 3 levels of splitters together to increase the number of connected monitors up to 512.

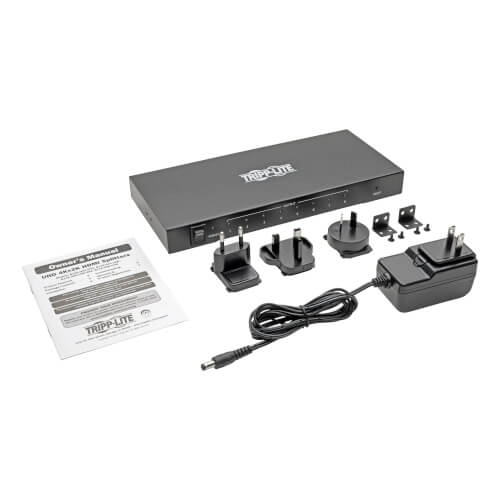

• Power Supply includes international plug adapters (North America, Europe, UK and Australia)
