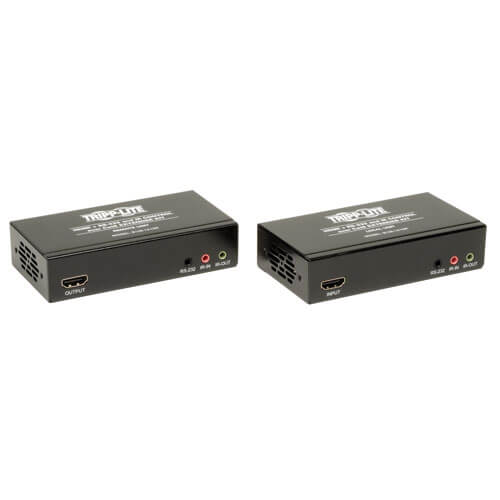

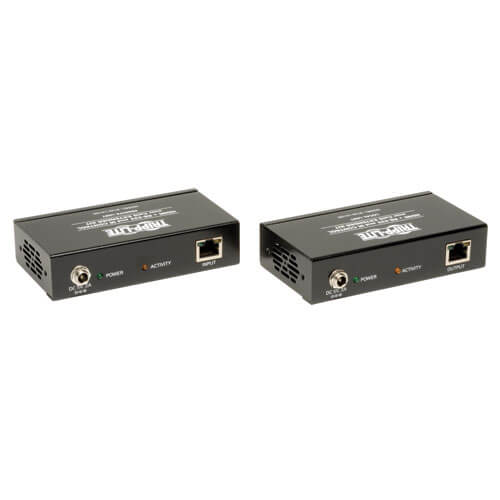

TRIPPLITE B126-1A1SR HDMI over Cat5/6 Extender Kit, Transmitter/Receiver, 4K, Serial and IR Control, Up to100m

Description

B126-1A1SR transmit HDMI video and audio, RS-232 serial and IR Remote Control signals over a single Cat5e/6/6a
cable up to 328 ft. to a projector, monitor or television.

The kit is ideal for digital signs, trade shows, presentations, classrooms,
churches, retail settings and other applications where the video source is located farther than conventional
cables allow. How far you can extend the signals depends on the cable you use to connect the transmitter and receiver. You can extend a 3840 x 2160 (4K x 2K) Ultra High Definition (UHD) signal @ 24/30Hz up to 328.08-ft.(100 m) with a single Cat6a cable, up to 230-ft. (70.1 m) with a 24 AWG solid-wire Cat6 cable (Tripp Lite’s N202-Series), and up to 150-ft. (45.72 m) with a 26 AWG solid-wire Cat5e cable (N001- and N002-
Series).For extending computer video resolutions of 1920 x 1200 @ 60 Hz or high-definition video resolutions of 1080p @ 60 Hz up to 328.08-ft. (100 m), use a single 24 AWG solid-wire Cat5e/6 cable, such as Tripp
Lite’s N202-Series. You can also control RS-232 serial devices, such as touchscreen displays or
scanners, at baud rates up to 115 Kbps. The B126-1A1SR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.

Features:
Extends High-Definition Signals
● 328 ft. (100 m) with a single Cat6a cable (custom-ordered from Tripp Lite)
● 230-ft. (70.1 m) with a 24 AWG solid-wire Cat6 cable (N202-Series)
● 150-ft. (45.72 m) with a 26 AWG solid-wire Cat5e cable (N001- and N002-Series)

Supports the Latest Video and Audio Resolutions
● Works with all operating systems and HDMI video sources
● Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
● Supports 3D video and HDCP

Allows You to Control Other Display Devices
● 2-way 39 KHz IR Remote Control functionality lets you control your Blu-ray player with its remote while
standing at the remote monitor (and vice versa)
● RS-232 serial port supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors

Easy to Set Up and Use
● Plug-and-play engineering—no software or drivers to download and install
● Units connect quickly to source and display with HDMI cable (P568-Series)

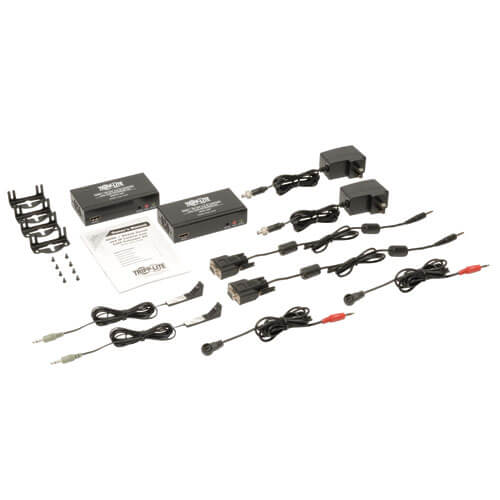

● Included mounting hardware lets you install each unit on a wall, rack or pole

TAA-Compliant
● Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
