Description

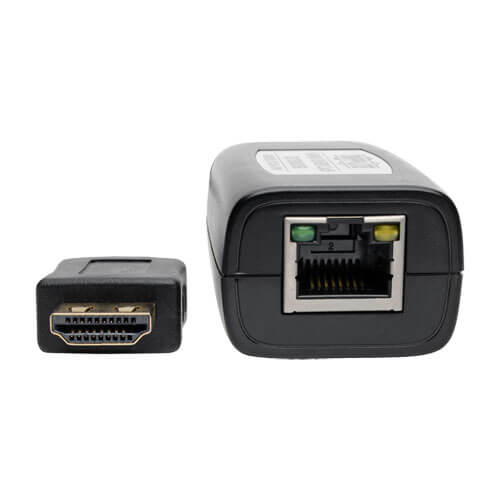

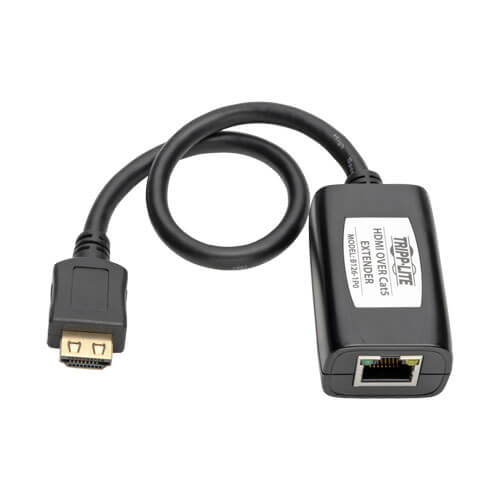

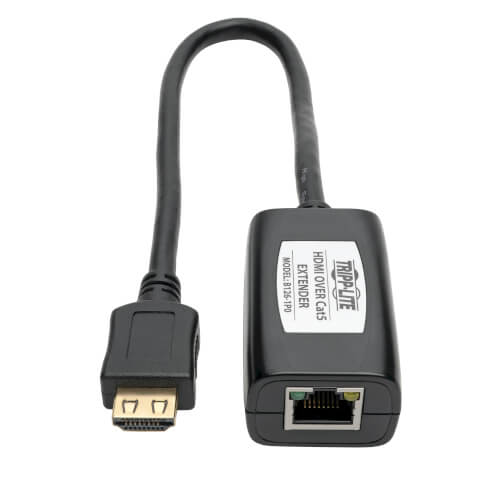

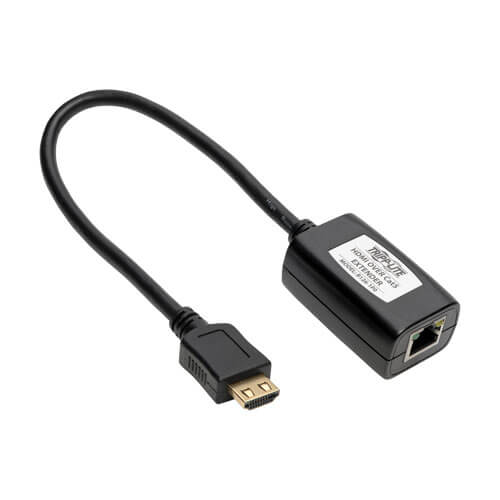

B126-1P0 HDMI over Cat5/Cat6 Passive Remote Receiver works with Tripp Lite’s B126-002 and B126-004 transmitters to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It’s ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.
The B126-1P0 can extend a 1080i (60 Hz) signal up to 100-ft. (30.5 m) or a 1080p (60 Hz) signal up to 50-ft. (15.24 m) with a single Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series) between it and the transmitter. The built-in HDMI cable features a latching connector that helps prevent accidental disconnection. No external power is required.
In addition to crystal-clear video, the B126-1P0 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install.
Features:
Extends High-Definition Signals
* Works in tandem with Tripp Lite’s B126-002 and B126-004 transmitter units
* Extends a 1080i (60 Hz) signal up to 100-ft. (30.5 m)
* Extends a 1080p (60 Hz) signal up to 50-ft. (15.24 m)
* Connects to transmitter with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)

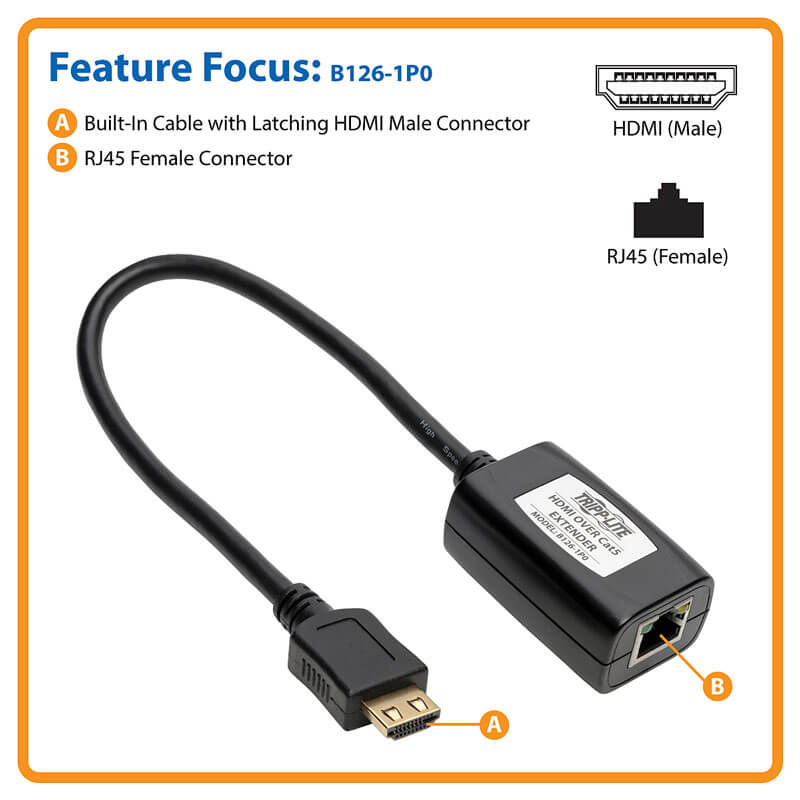

* Built-in HDMI cable with latching connector to help prevent accidental disconnection
Supports the Latest Video and Audio Resolutions
* Works with all operating systems and HDMI video sources
* Supports HD resolutions up to 1080p (60 Hz)
* Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or * B126-004 transmitter
* Supports 24-bit True Color (8 bits per channel) and HDCP
Easy to Set Up and Use
* Plug-and-play engineering—no software or drivers to download and install
* No external power required
TAA-Compliant
* Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
