TRIPPLITE B156-004-HD-V2 4-Port DisplayPort 1.2 to HDMI Multi-Stream Transport (MST) Hub, 3840 x 2160 (4K x 2K)

PRODUCT DATASHEET

Displays the same image on 4 HDMI monitors, extends the desktop across all four, or combines all into one large monitor. Ideal for digital signage in schools, churches, conference rooms, trade shows and retail outlets.

• Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 60Hz
• Built-in 6 in. cable connects directly to DisplayPort source
• Supports up to 48-bit Deep Color (16 bits per channel)
• Works with all operating systems
• Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound



SKU: B156-004-HD-V2 Category:

Description

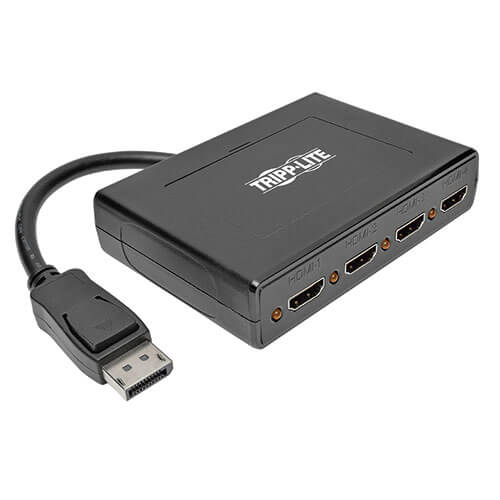

B156-004-HD-V2 4-Port DisplayPort 1.2 to HDMI MST Hub connects up to four HDMI monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all four monitors, extend the desktop across them, or combine all four as one large monitor in video wall mode.

The B156-004-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1920 x 1080 per monitor. In video wall mode, it supports expanded resolutions, such as 3840 x 2160 (4K x 2K) @ 60Hz in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration.

This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-004-HD-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features:

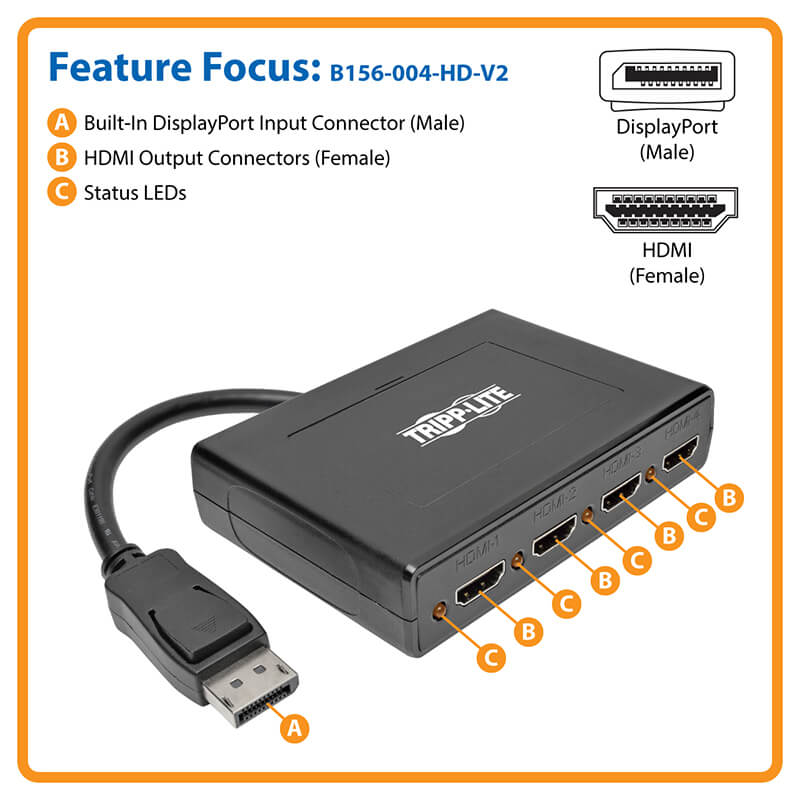

Connects Up to 4 HDMI Monitors to Your Computer’s DisplayPort Output
• Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings

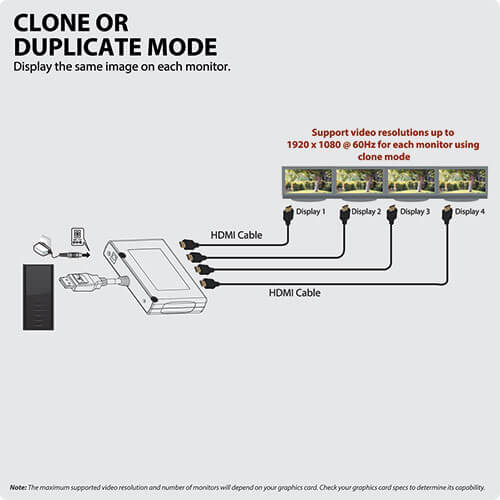

• Displays same image on 4 monitors simultaneously in mirror mode

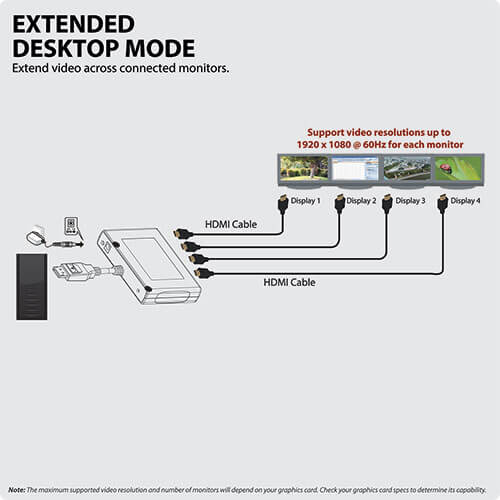

• Extends desktop across 4 monitors in extended mode

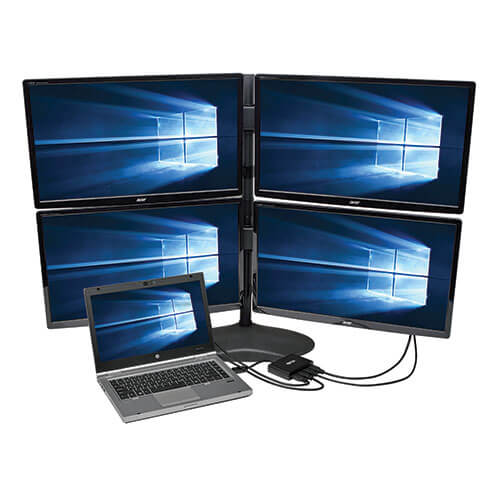

• Combines 4 monitors into one large monitor in video wall mode

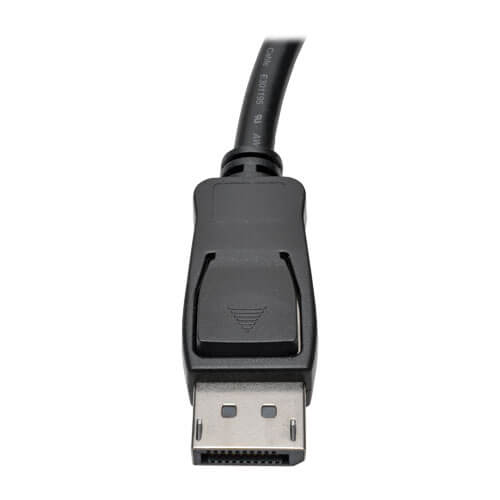

• Built-in 6 in. cable connects directly to DisplayPort source

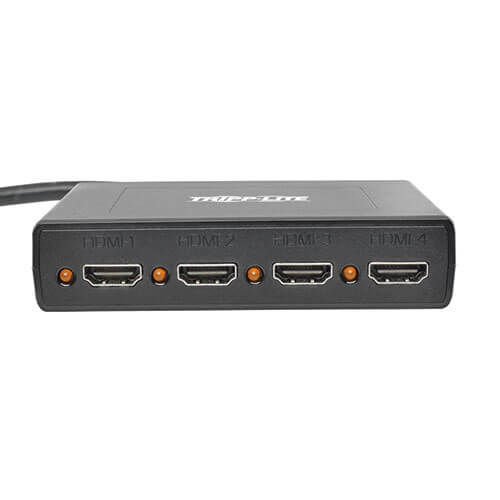

• LEDs indicate when monitors are receiving a signal

Meets the Latest Performance Standards
• Supports HD video resolutions up to 1920 x 1080 per monitor
• Supports expanded resolutions in video wall mode, such as 3840 x 2160 (4K x 2K) @ 60Hz in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration
• Supports HDCP, EDID and DDC
• Supports 48-bit Deep Color (16 bits per channel)
• Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio

Easy to Use Almost Anywhere
• Works with all operating systems
• Plug and play—no software or drivers required

TAA Compliant
• Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
