Description

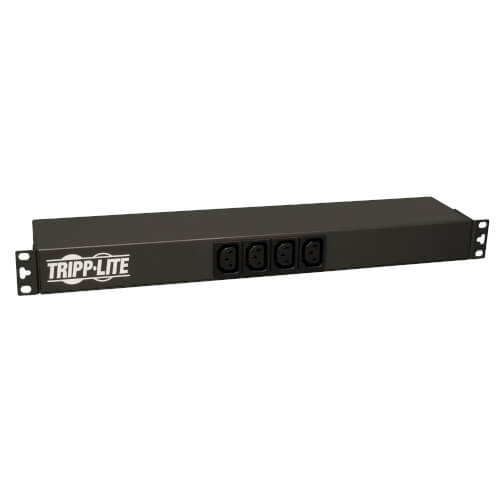

PDUH20DV 1.6-3.8kW Single-Phase 100-240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH20DV features 14 total outlets—four C13 in front and eight C13 and two C19 in the rear.

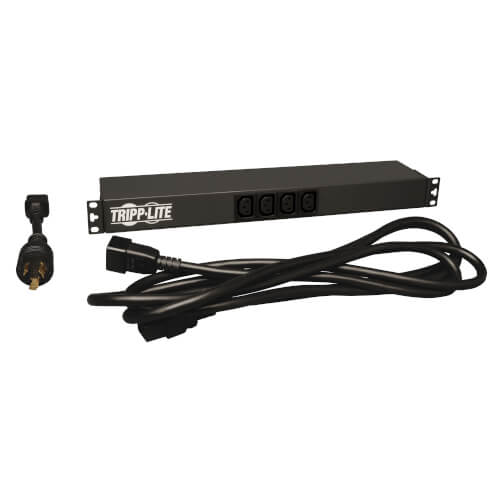

The C20 input plug with detachable 12-ft. (3.66 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment. A NEMA L6-20P adapter is included for 208/240V power environments. The C20 inlet accepts any country-specific power cord with a C19 connector.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.

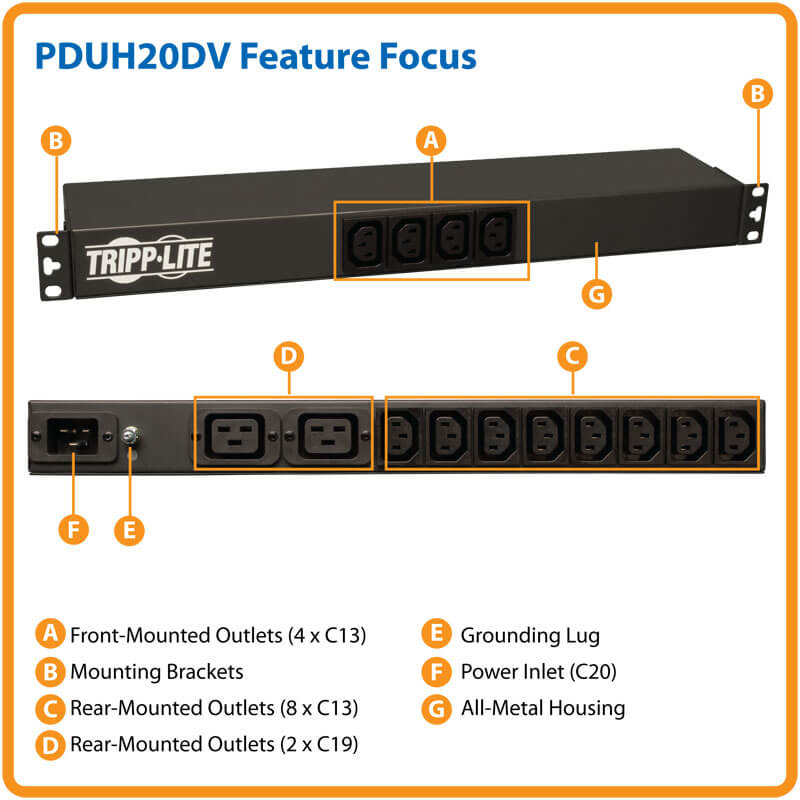

Features:
Reliable Single-Phase 16A 100-240V Power Distribution
* Versatile no-frills PDU for data centers, server rooms and network wiring closets

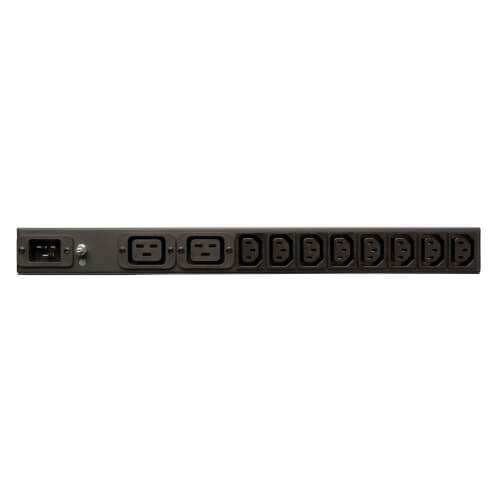

* 14 total outlets—4 C13 in front, 8 C13 and 2 C19 in rear
* C20 input with detachable 12-ft. (3.66 m) cord and NEMA L6-20P adapter
* Inlet accepts any country-specific power cord with C19 connector
* Rear-panel grounding lug
Switchless Design
* Prevents accidental shutdowns and costly downtime
Versatile Installation Options
* Reversible all-metal housing faces front or rear in rack
* Supports 1U horizontal or 0U vertical mounting in EIA-standard 19 in. racks
* Also mounts on wall, workbench or under a counter
