TRIPPLITE B125-101-60 HDMI over Dual Cat5/Cat6 Extender Kit, Transmitter/Receiver for Video,Audio, 1920×1200 1080/60p (HDMI F/F), Up to 150-ft

SKU: B125-101-60 Category:

Description

B125-101-60 HDMI Over Dual Cat5 Extender Kit is the perfect solution for those who need to extend a HDMI signal over a long distance over two Cat5/6 cables.

When using 24Awg, Solid Wire Cat6 cable, a 1080p @ 60Hz (or 1920 x 1200) signal can be extended up to 150 ft. from the source.
When using 24Awg, Solid Wire Cat6 cable, a 3D signal can be extended up to 125 ft.
When using 24Awg, Solid Wire Cat5 cable, a 1080p @ 60Hz (or 1920 x 1200) signal can be extended up to 100 ft. from the source.
When using 24Awg, Solid Wire Cat5 cable, a 3D signal can be extended up to 75 ft.

Simply run two Cat5/6 cables between the local transmitter and remote receiver units, and plug in standard Tripp Lite HDMI cables to the HDMI source and the display.

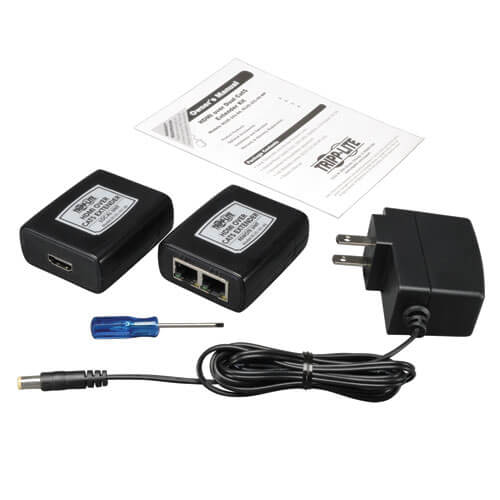

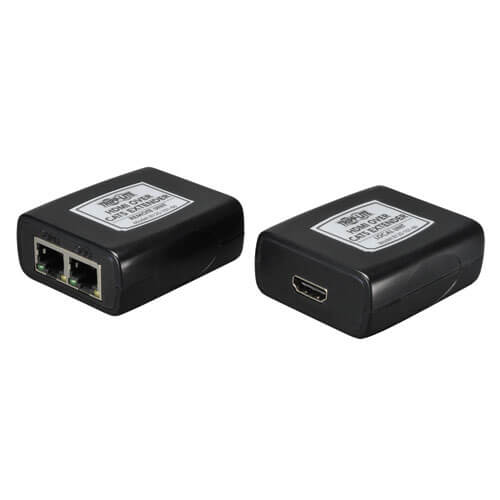

The B125-101-60 comes with both local transmitter and remote receiver units. DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio are supported, and it is compliant with HDCP, EDID and DDC. 24-bit True Color (8-bits per channel) is supported. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

  • Extends a 1080p at 60 Hz (or 1920 x 1200) signal up to 150-ft. (45.7 m) using 24 AWG Solid Wire Cat6 cabling (N202-Series)
  • Extends a 1080p at 60 Hz (or 1920 x 1200) signal up to 100-ft. (30.5 m) using 24 AWG Solid Wire Cat5 cabling
  • Extends a 3D signal up to 125-ft. (38.1 m) using 24 AWG Solid Wire Cat6 cabling, or up to 75-ft. (22.9 m) using 24 AWG Solid Wire Cat5 cabling
  • Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
  • Supports HDCP, EDID and DDC
  • Supports 24-bit True Color (8-bits per channel)
  • Use P568-Series HDMI cables to connect to HDMI source and monitor

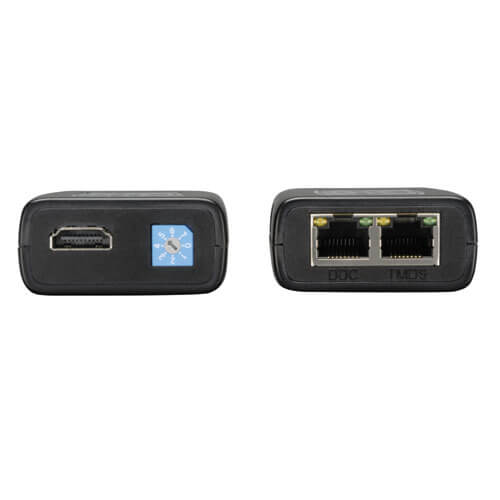

  • Equalization control dial for skew compensation
  • Supports Lip-Sync Pass Through, and CEC pass through
  • Green LED indicate power being received
  • Orange LED indicates signal connection
  • Compliant with the Federal Trade Agreements Act ( TAA ) for GSA schedule purchases
