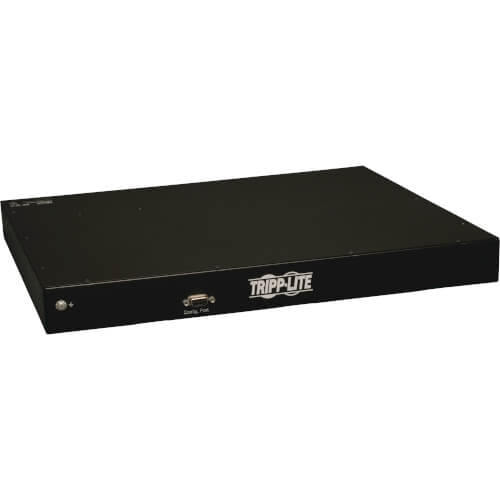

TRIPPLITE PDUMNH20HV Monitored PDU 8 C13 Outlets, C20 Input with L6-20P Adapter, 2.4m Cord, 1U Rack-Mount

PRODUCT DATASHEET

* Monitored 16A 208/230V PDU, 1U horizontal rackmount
* Reports voltage, frequency & load level via ethernet interface
* Visual current meter, Reversible housing
* C20 inlet; 8ft / 2.4m C20 cable with L6-20P plug adapter
* 8 C13 outlets with included plug-lock retention sleeves
* Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management
* TAA Compliant for GSA Schedule purchases



Description

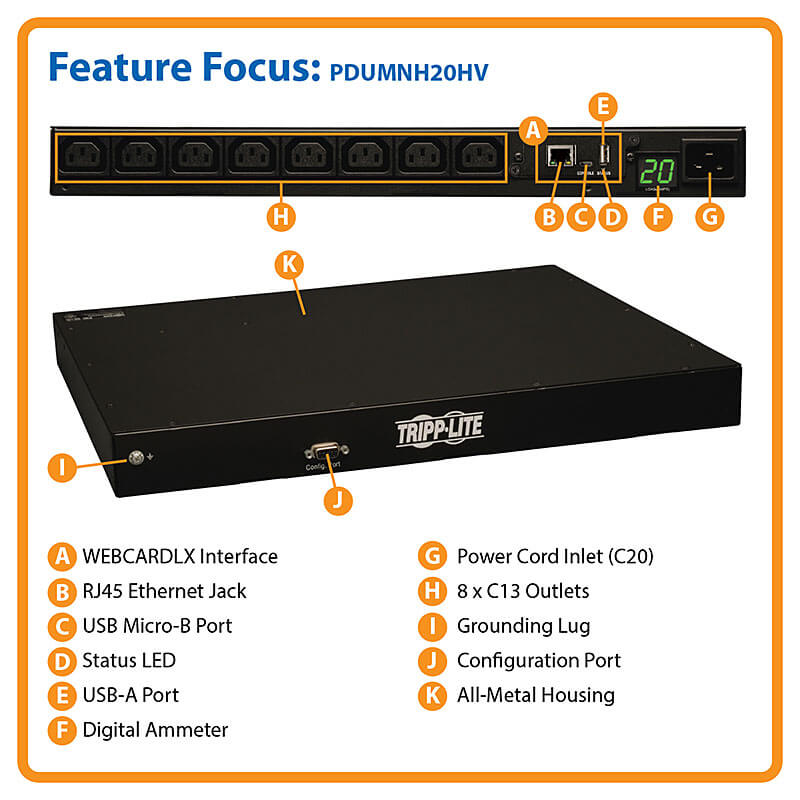

PDUMNH20HV Features:

  • 16/20A 230/208V Monitored Power Distribution Unit / rack PDU (rPDU) (agency derated to 16A continuous)

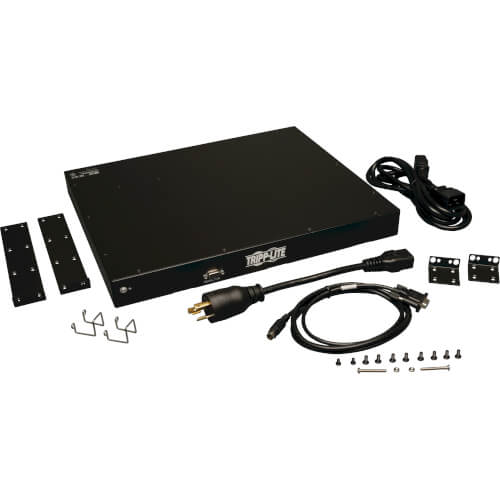

  • C20 inlet; 8ft / 2.4m C20 cable and NEMA L6-20P plug adapter included
  • 1U horizontal rackmount installation

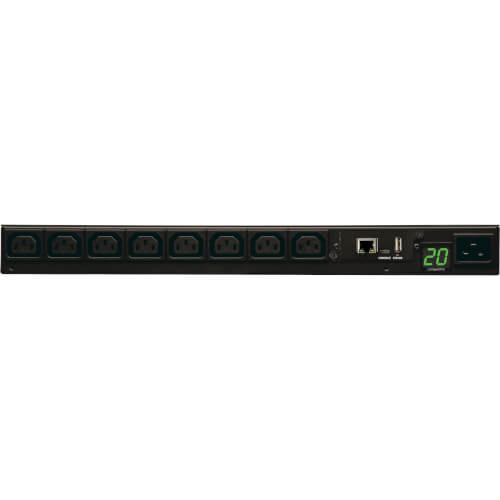

  • 8 C13 outlets
  • Lighted display reports output power consumption in amps
  • Built-in network interface reports voltage, frequency and PDU loading via network or secure web browser interface with options for user specified alarm and notification thresholds
  • Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
  • PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
  • Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
  • 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
  • Real-time clock backup maintains the time of day and date even if the PDU is unpowered
  • Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
  • Alert notifications via email or SNMP traps offer immediate event notification
  • Firmware upgrade ability supports future product enhancements.
  • Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
  • Mounting ears are reversible for front or rear facing rackmount installation
  • Included cord retention brackets keep vital network equipment plugged in and continuously powered
  • TAA Compliant for GSA Schedule purchases

Additional information

Weight 6.12 kg
Dimensions 58.42 × 52.7 × 15.24 cm
