Description

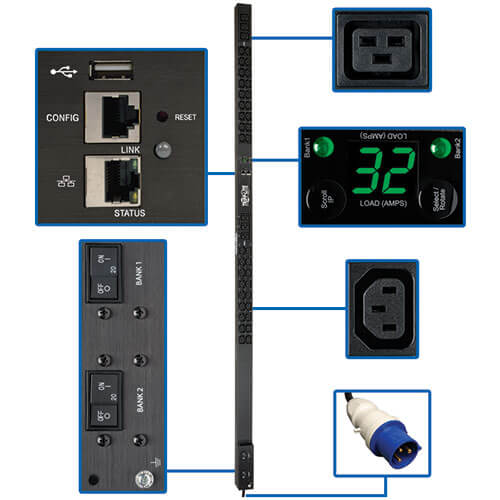

PDUMNV32HV2LX 7.7kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

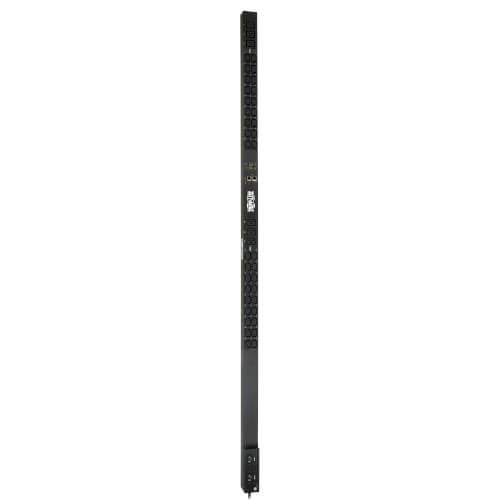

The 0U PDU features 42 outlets (36 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-ft. (3.05 m) cord with IEC 309 32A Blue (2P+E) plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

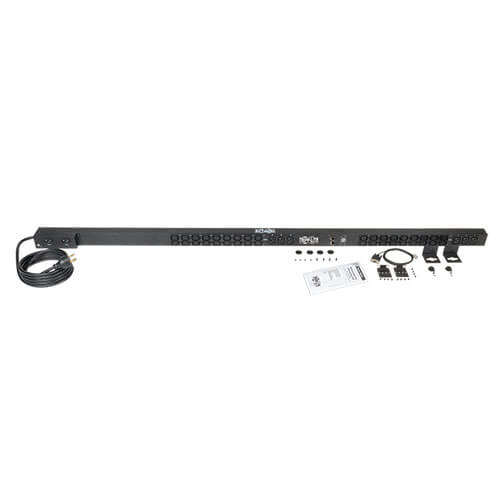

A digital ammeter allows you to monitor each load bank’s current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

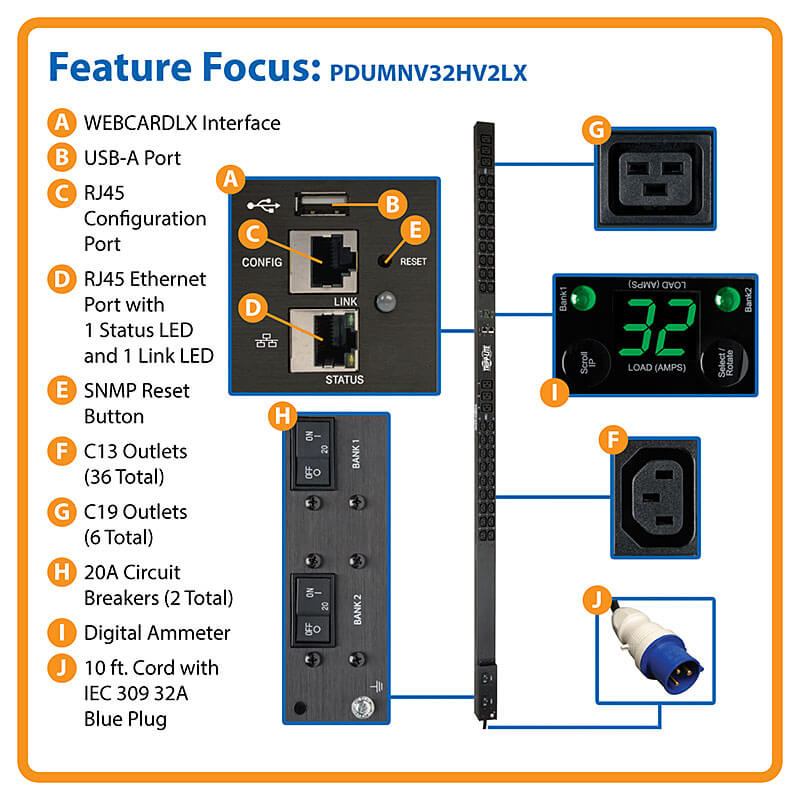

Features
Distributes and Monitors Network-Grade Single-Phase Power
* 7.7kW 200-240V monitored PDU with single-phase input

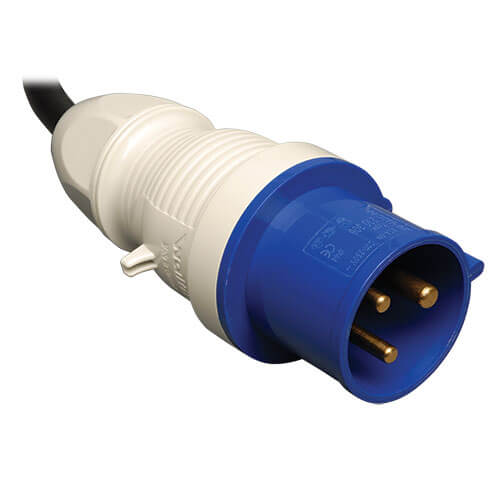

* IEC 309 32A Blue (2P+E) plug with 10-ft. (3.05 m) cord connects to compatible AC power source
* Firmware upgrades support future product enhancements

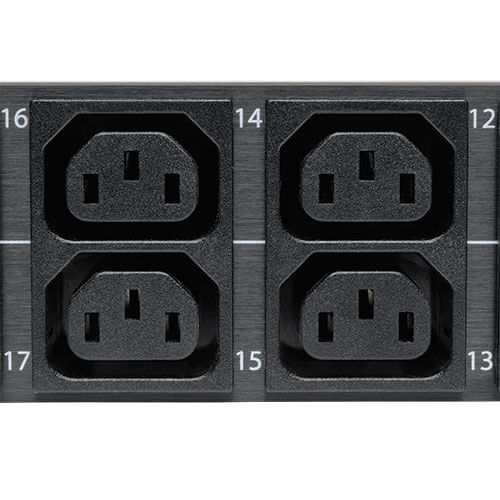

42 Outlets Distribute AC Power

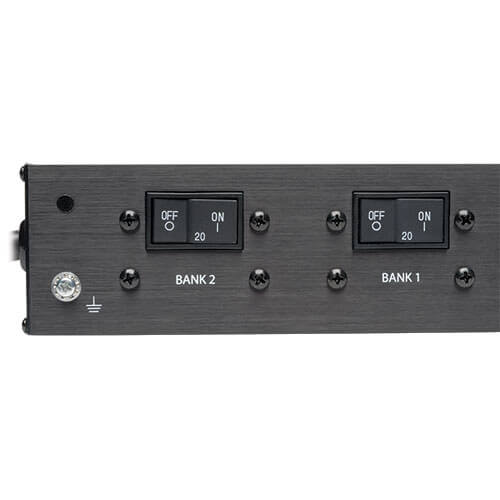

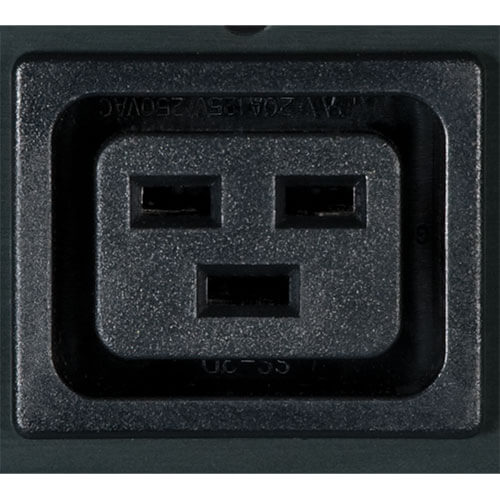

* 36 C13 and 6 C19 outlets split into 2 separately breakered 20A load banks
* Plug-lock insert sleeves prevent cables from becoming accidentally disconnected

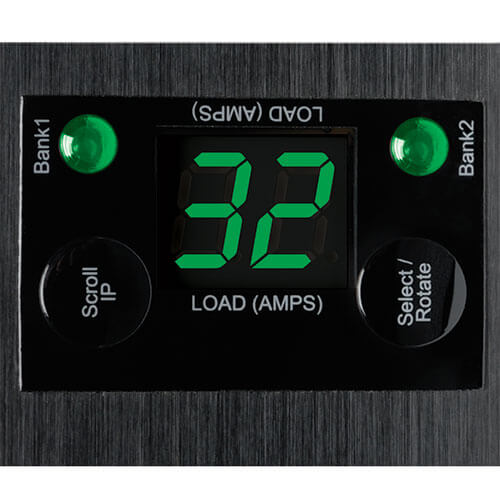

Digital Ammeter
* Reports current for each load bank and total connected PDU load
* Supports IP-address self-ID
* Rotates 180° for easy reading at either angle
* Measurement accuracy plus minus 1A

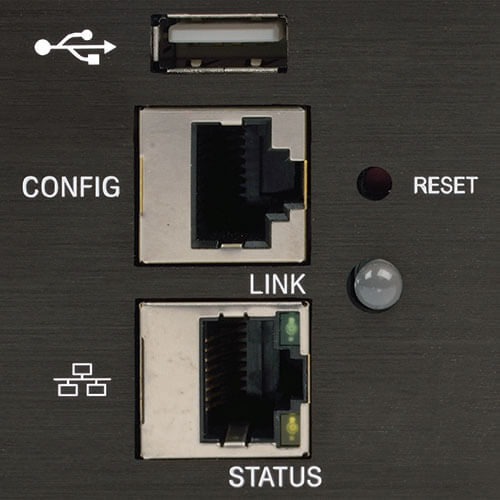

Built-In LX Platform Interface
* Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
* PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
* Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
* Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
* No Java required
Broad Communications Compatibility
* Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
* Supports automatic and manual assignment of IP address
Essential Safety Features
* Tiered access allows administrator and guest to log in via web browser
* Immediate alert notifications via email or SNMP traps
* Supports user-specified alarm notification thresholds
* Real-time clock backup maintains day/date even if PDU is unpowered

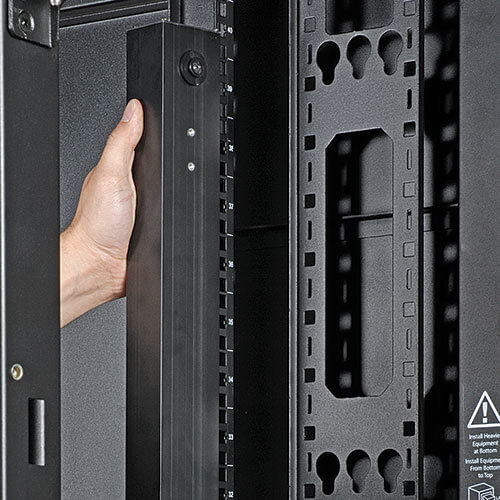

Easy 0U Installation in EIA-Standard 19 in. Racks
* Mounts vertically using included toolless buttons or rack-mounting brackets
* Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
